Continuous Non-Contact Distance measurement for any application

Pulstar 150 Sensor - Massa

MassaSonic PulStar® Series Ultrasonic Sensors are ruggedly designed transmitting modules, providing reliable continuous level or distance measurement at ranges from 4 inches (100mm) to 20 feet (6m). The PulStar® series products are a direct result of improvements made upon the M-300 and M-320 sensors and serve as a drop-in replacement for those legacy products. These durable Sensors are RoHS compliant, IP68 rated, and available in three versions. All models provide precision measurement for applications such as factory automation, process control, tank level monitoring, object detection, and more. With the inclusion of state-of-the-art processing algorithms, false echoes due to object interference are a thing of the past.

Contact a Massa Applications Specialist to discuss your specific sensing needs today!

Common Applications

Roll Diameter Measuring Sensors

Distance Detection Sensors

Stacking Level Measurement Sensors

Tank Level Monitoring

Fully Customizable Distance Measurement Sensor Solutions

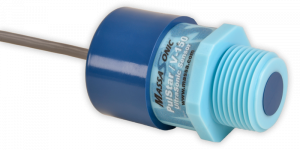

Pulstar 150 Sensor - Massa

The lower cost standard models in the PulStar Series are accurate, rugged, and particularly ideal if false echoes from sound reflecting structures between the sensor and the surface being measured are not encountered and extended detection ranges not required.

MassaSonic PulStar Standard Sensors
150 kHz
(Short Range)
95 kHz
(Medium Range)
Minimum Detection Distance 4 inches
(100mm)
12 inches
(300mm)
Maximum Detection Distance 7 feet
(2.1m)
13 feet
(4m)
Automatic User Programmable Adjustment of Detection Settings No No
0 to 10 V DC Analog Output Model Yes Yes
0/4 to 20 mA DC Analog Output Model Yes Yes
Housing Material PVC or PVDF
Mount 1 inch NPT
Operating Temperature Range -40°C to 70°C
Electronic Communication Using a Computer RS-485 data link allowing up to 32 sensors
on a multi-drop communication network
Datasheet Link PulStar/PulStar Plus Datasheetpdf icon
Installation & Operation Guide (New) PulStar Ultrasonic Sensor Installation & Operating Guidepdf icon
MassaSonic Software (New) MassaSonic Software Version 4.51 (Download)
MassaSonic Release Notes MassaSonic Software Release Notes 11/22/23 (Download)
MassaSonic Software (Legacy) MassaSonic Software Version 3.73 (Download)
Installation & Operation Guide (Legacy) PulStar Ultrasonic Sensor Installation & Operating Guide (Legacy)pdf icon
Serial Communications Guide PulStar and Flatpack Serial Communications Guidepdf icon

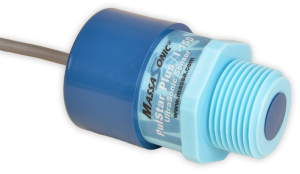

PulStar Plus Series Sensor

PulStar Plus Sensor additional features include: drop down menus to auto adjust detection settings to ignore false echoes caused by stationary objects in the sound path (mounting tubes), and contain a High Power Setting for extended detection range.

MassaSonic PulStar Plus Sensors
150 kHz
(Short Range)
95 kHz
(Medium Range)
Minimum Detection Distance 4 inches
(100mm)
8 inches
(200mm)
Maximum Detection Distance 9 feet
(2.7m)
20 feet
(6m)
Automatic User Programmable Adjustment of Detection Settings Yes Yes
0 to 10 V DC Analog Output Model Yes Yes
0/4 to 20 mA DC Analog Output Model Yes Yes
Housing Material PVC or PVDF
Mount 1 inch NPT
Operating Temperature Range -40°C to 70°C
Electronic Communication Using a Computer RS-485 data link allowing up to 32 sensors
on a multi-drop communication network
Datasheet Link PulStar/PulStar Plus Datasheetpdf icon
Installation & Operation Guide (New) PulStar Ultrasonic Sensor Installation & Operating Guidepdf icon
MassaSonic Software (New) MassaSonic Software Version 4.51 (Download)
MassaSonic Release Notes MassaSonic Software Release Notes 11/22/23 (Download)
MassaSonic Software (Legacy) MassaSonic Software Version 3.73 (Download)
Installation & Operation Guide (Legacy) PulStar Series Sensor Installation & Operating Guide (Legacy)pdf icon
Serial Communications Guide PulStar and Flatpack Serial Communications Guidepdf icon

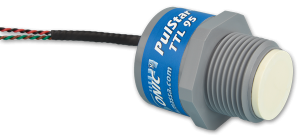

PulStar TTL Series Sensor

PulStar TTL Sensors easily interface into an OEM system integrator’s control system. Powered by 5V DC, they communicate using asynchronous UART TTL 1.8V signals and have the detection setting features of a PulStar Plus to ignore false echoes.

MassaSonic PulStar TTL Sensors
150 kHz
(Short Range)
95 kHz
(Medium Range)
Minimum Detection Distance 4 inches
(100mm)
8 inches
(200mm)
Maximum Detection Distance 7 feet
(2.13m)
13 feet
(4m)
Automatic User Programmable Adjustment of Detection Settings Yes
0 to 10 V DC Analog Output Model No
0/4 to 20 mA DC Analog Output Model No
Housing Material PVC
Mount 1 inch NPT
Operating Temperature Range -40°C to 70°C
Electronic Communication Using a Computer TTL to USB converters
Datasheet Link PulStar TTL Datasheetpdf icon
MassaSonic Software (New) MassaSonic Software Version 4.47 (Download)
MassaSonic Software (Legacy) MassaSonic Software Version 3.73 (Download)
Installation & Operation Guide PulStar TTL Sensor Installation & Operating Guidepdf icon
Serial Communications Guide PulStar and Flatpack Serial Communications Guidepdf icon
Pulstar L95 Series Sensor

MassaSonic PulStar® Loop-Powered Sensors are ruggedly designed transmitting modules that provide reliable continuous level or distance measurement of fluids, pastes, or solid bulk materials.

PulStar L-95 Loop-Powered Sensor
95 kHz
(Medium Range)
Minimum Detection Distance 8 inches
(200mm)
Maximum Detection Distance 20 feet
(6m)
Housing Material PVDF
Mount 2 inch NPS
Operating Temperature Range -30°C to 65°C
Datasheet Link PulStar L-95 Datasheetpdf icon
